The new Q-Line with BHS180 complements Zünd’s current offering and raises the bar for industrial and efficient pallet-to-pallet production. It is specifically intended for the demands of highly automated, industrial finishing of printed boards for displays and packaging.
The individual components like the board feeder with UNDERCAM, the new Q-Line cutter generation, and the off-load unit, are optimally coordinated and provide previously unattainable levels of productivity. Together, they offer incredible cutting accuracy and reliability. Consequently, they make it easier than ever for packaging and display manufacturers to automate their cutting operations and achieve maximum efficiency. In doing so, the Q-Line with BHS180 helps manufacturers optimise their production processes and increase their overall productivity.
The Q-Line with BHS180 is a comprehensive, advanced system solution that takes digital production to a new level. It offers exceptional performance for any display and packaging manufacturer. Each component of this advanced digital cutting system is replete with exciting new features. In combination, they enable an unsupervised, uninterrupted production workflow and provide users with an enormous potential for savings, irrespective of company size. This constitutes an investment that can help customers sustainably improve their competitive edge.
The new machine concept behind the Q-Line with BHS180 has redefined performance in many respects. Working together, the new machine components generate an impressive speed of up to 2.8m/s. The new substructure for Q-Line cutters is made from extremely stable concrete. It ensures incredibly smooth operation and optimum cutting precision, even at extremely high speeds. The beams are made of carbon fibre-reinforced plastic, which makes them very light and exceedingly strong. This means even demanding materials can be processed at top speeds and the highest quality levels. Unprecedented performance also manifests itself in various other aspects, including in the impressive acceleration of up to 2.1g made possible by the new, linear drive system. Jobs can therefore be processed at even greater speeds which, in turn, leads to significantly shorter cycle times per job.

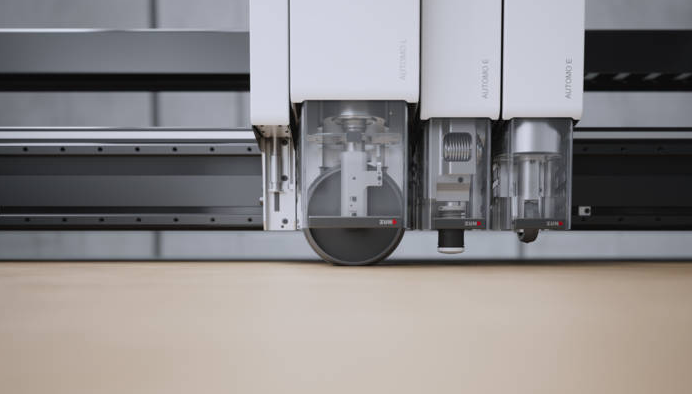

The Q-Line with BHS180 comes with the latest generation of modules and tools. AUTOMO L is all about force and provides a creasing pressure of up to 50kg. This makes it the perfect carrier module for creasing with large crease wheels such as the CRETO 150. AUTOMO E excels particularly in the speed in which it lowers and lifts the tools in use. Each beam is equipped with a total of four modules: two AUTOMO E modules, one AUTOMO L, and one fixed INCAM sensor module to capture registration marks, QR codes, and material edges.
UNITO is the tool used with centred and off-centred drag knives and is suitable for processing materials up to 5mm thick. ELOSTO is available in two different variations for cutting operations requiring electric motor-driven oscillation. If creasing wheels are to be used, CRETO is the required tool. CRETO 24, CRETO 61, and CRETO 150 differ slightly in their design and can accommodate crease wheels of different types and diameters. PERTO is the tool used in conjunction with perforating wheels. DRAWTO is for marking and drawing on an extremely wide range of materials.
The new tool-management system for Q-Line with BHS180 makes digital finishing more efficient than ever before. Q-Line cutters come standard with an automatic tool-changing system. The TOMAC Tool Management Client takes care of tool management from start to finish, ensuring easy and, above all, automated processes. Tool management digitally links the tools with presets, which saves valuable time in setup and tool changes.
The Q-Line with BHS180 removes bottlenecks in digital cutting by eliminating the need for manual material handling. Automatic material transport from pallet to pallet maximises the productivity of the production workflow and prevents idle time.
A customisable, transparent production workflow also ensures smooth and reliable order processing. The system captures the information stored for each job using QR codes and thus ensures an intelligent, error-free, QR code-based production workflow. It enables processing a variety of different jobs in the stack. Processing begins automatically.
The UNDERCAM integrated in the board feeder captures the precise location of the image printed on the board. It reliably identifies any distortions in the print, compensates for them, and perfectly matches the cut to the print every time. With every scan, the software adjusts the cut paths to the printed image, on the fly and in real time, significantly reducing the cycle time for each job.
During the feeding process, sensors capture the edges of the material, and the board is correctly aligned. If the board is not within tolerance, the board feeder grabs the board once more and realigns it so that it can be fed onto the cutter without interruption. This allows even imperfectly stacked materials to be processed, which further streamlines the production workflow. To ensure reliable board and sheet separation, redeveloped suction cups can be individually adjusted for different materials via Zünd Cut Center – ZCC.
In an initial phase, the new Q-Line with BHS180 is available as a dual-beam system in three different sizes. Users select the appropriate machine size for their specific requirements, no matter whether their production involves one-offs, small batches, or high-volume orders. The Zünd Cutter Q 32-32 D has a working width of 3.2m, the Q 22-32 D has a working width of 2.2m, and the Q 18-32 D has a working width of 1.8m.
|
