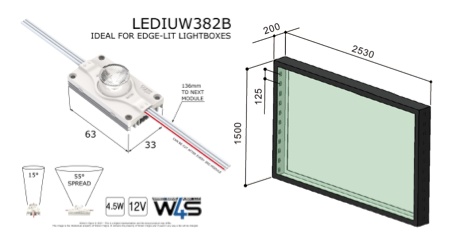

The edge-lit module has been specially designed for large double sided light boxes. This module can be used to illuminate light boxes up to 2.5 metres wide. The length of the sign is unlimited. The LED Modules are powered by top of the range Osram SQ LED Chips and each module pushes out an impressive 400 lumens.
Edge lighting saves a considerable amount of installation time compared to the traditional backlit LED Modules as there are fewer components to install.
Wired4Signs currently stocks 11 different edge-lit modules that each have a specific application.
Main Parameters:
– 4.5 Watts Per Module.
– OSRAM SQ LED Chip.
– 400 lumen Per module.
– 15° x 55° Asymmetric Optic Design.
– Five Year Replacement Warranty.
Created For:
250-150mm deep light boxes up to 2.5 metres wide and single or double sided light boxes.
